- Processador: Socket AMD AM4 3ª Gen AMD Ryzen™
- Chipset: AMD B550
- Memória RAM:
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Un-buffered
- Arquitetura de Memória Dual Channel
- Suporta Intel® Extreme Memory Profile (XMP)
- OptiMem
- Gráficos:
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 2.1(4K@60HZ)
- Slots de expansão:
- Processadores 3ª Ger. AMD Ryzen™
- 1 x PCIe 4.0 x16 (x16 mode)
- AMD B550 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 1 x PCIe 3.0 x1
- Armazenamento:
- 2 x M.2 slots e 4 x SATA 6Gb/s
- 3a Ger. AMD Ryzen™ :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support(opcional RGB)
- AMD B550 Chipset :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage
- 4 x SATA 6Gb/s
- Suporta Raid 0, 1, 10
- LAN: Realtek RTL8111H 1Gb Ethernet
- Áudio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Portas USB:
- Traseiras ( Total 6 )
- 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- Frontais ( Total 6 )
- 2 x USB 3.2 Gen 1 (2 x Type-A)
- 4 x USB 2.0 (4 x Type-A)
- Portas I/O Painel Traseiro:
- 1 x Porta(s) PS/2 combo teclado/rato
- 1 x DVI-D
- 1 x D-Sub
- 1 x Porta(s) LAN (RJ45)
- 1 x HDMI
- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
- 4 x USB 3.2 Gen 1 (azul) Type-A
- 3 x Audio jack(s)
- Conectores I/O Internos
- 2 x USB 2.0 Conector(es) suporta(m) mais 4 USB 2.0 porta
- 4 x Conector(es) SATA 6Gb/s
- 1 x CPU OPT Fan
- 1 x Conector(es) CPU Fan
- 2 x Conector(es) Chassis de ventoinha
- 1 x Saída S/PDIF header
- 1 x Conector(es) 24-pin EATX
- 1 x Conector(es) (AAFP) áudio no painel frontal
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header
- 1 x USB 3.2 Gen 1(up to 5Gbps) support additional 2 USB 3.2 Gen 1 port
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 1 x 8-pin EATX 12V Power s
- 1 x Clear CMOS jumper
- 1 x System panel
- 1 x COM port header
- 1 x Speaker
- Dimensões: mATX, 24.4 cm x 24.4 cm
Ref. Interna | 90MB14I0-M0EAY0 |
---|---|
EAN | 4718017755528 |
Part Number | 90MB14I0-M0EAY0 |
Marca | Asus |
Cor | Preto |
Asus

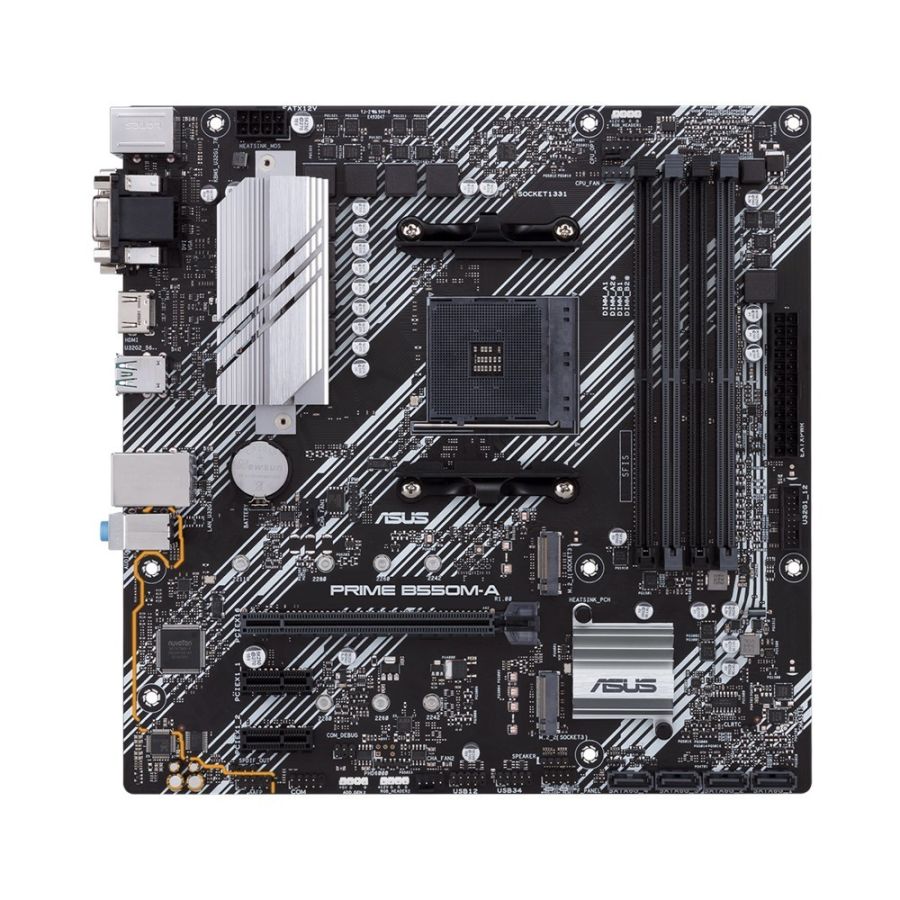

Motherboard Prime B550M A M ATX AM4
MB micro ATX AMD B550 (Ryzen AM4) com dois conectores M.2 PCIe 4.0 Ethernet 1 Gb HDMI / D-Sub / DVI SATA 6 Gbps USB 3.2 Gen 2 tipo A e suporte Aura Sync RGB.
Esgotado
- Processador: Socket AMD AM4 3ª Gen AMD Ryzen™
- Chipset: AMD B550
- Memória RAM:
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Un-buffered
- Arquitetura de Memória Dual Channel
- Suporta Intel® Extreme Memory Profile (XMP)
- OptiMem
- Gráficos:
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 2.1(4K@60HZ)
- Slots de expansão:
- Processadores 3ª Ger. AMD Ryzen™
- 1 x PCIe 4.0 x16 (x16 mode)
- AMD B550 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 1 x PCIe 3.0 x1
- Armazenamento:
- 2 x M.2 slots e 4 x SATA 6Gb/s
- 3a Ger. AMD Ryzen™ :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support(opcional RGB)
- AMD B550 Chipset :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage
- 4 x SATA 6Gb/s
- Suporta Raid 0, 1, 10
- LAN: Realtek RTL8111H 1Gb Ethernet
- Áudio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Portas USB:
- Traseiras ( Total 6 )
- 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- Frontais ( Total 6 )
- 2 x USB 3.2 Gen 1 (2 x Type-A)
- 4 x USB 2.0 (4 x Type-A)
- Portas I/O Painel Traseiro:
- 1 x Porta(s) PS/2 combo teclado/rato
- 1 x DVI-D
- 1 x D-Sub
- 1 x Porta(s) LAN (RJ45)
- 1 x HDMI
- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
- 4 x USB 3.2 Gen 1 (azul) Type-A
- 3 x Audio jack(s)
- Conectores I/O Internos
- 2 x USB 2.0 Conector(es) suporta(m) mais 4 USB 2.0 porta
- 4 x Conector(es) SATA 6Gb/s
- 1 x CPU OPT Fan
- 1 x Conector(es) CPU Fan
- 2 x Conector(es) Chassis de ventoinha
- 1 x Saída S/PDIF header
- 1 x Conector(es) 24-pin EATX
- 1 x Conector(es) (AAFP) áudio no painel frontal
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header
- 1 x USB 3.2 Gen 1(up to 5Gbps) support additional 2 USB 3.2 Gen 1 port
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 1 x 8-pin EATX 12V Power s
- 1 x Clear CMOS jumper
- 1 x System panel
- 1 x COM port header
- 1 x Speaker
- Dimensões: mATX, 24.4 cm x 24.4 cm
Ref. Interna | 90MB14I0-M0EAY0 |
---|---|
EAN | 4718017755528 |
Part Number | 90MB14I0-M0EAY0 |
Marca | Asus |
Cor | Preto |
